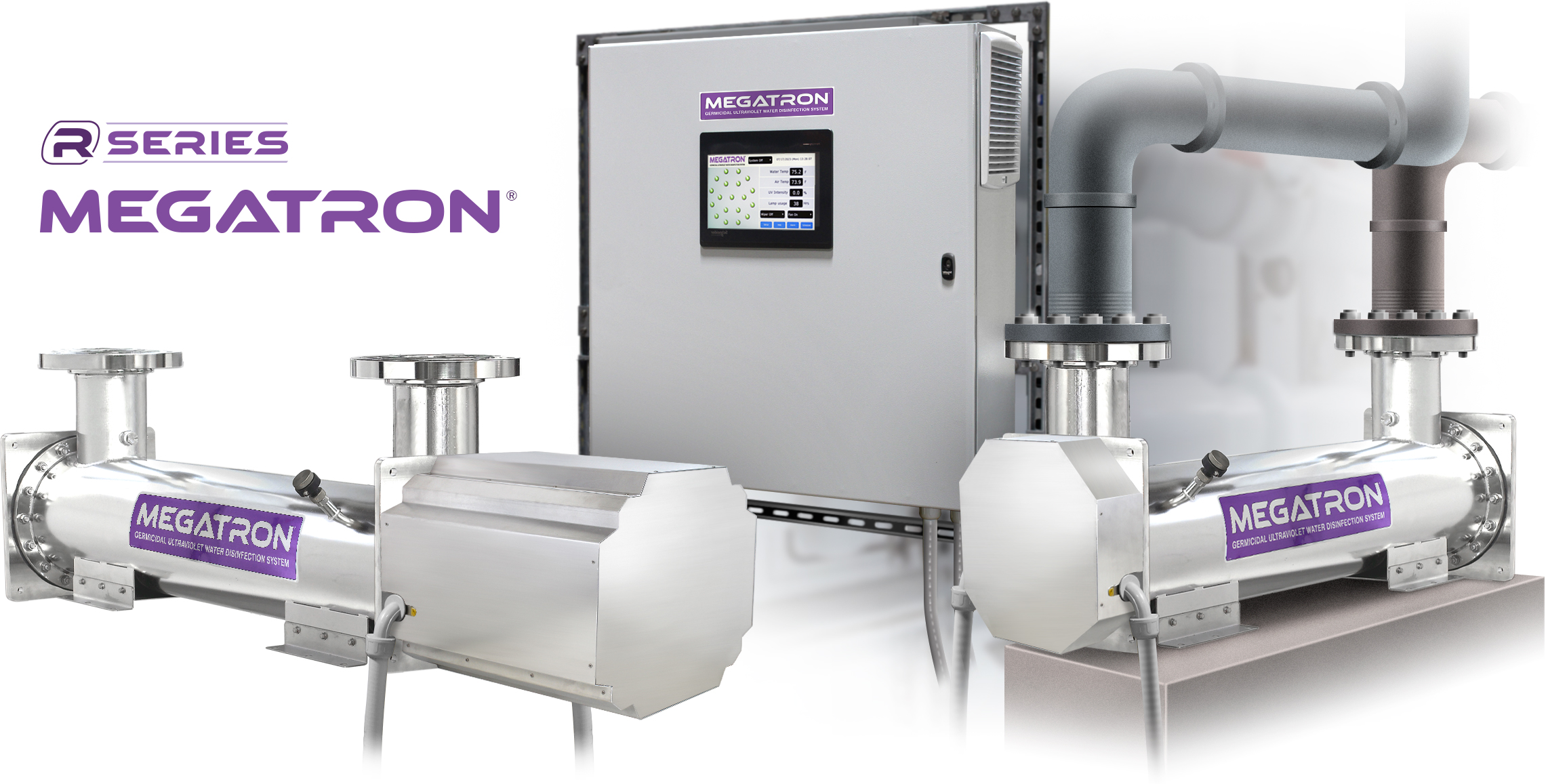

Megatron R Series

These new Megatron® models are a huge step forward. Our remote enclosure protects the upgraded electrical components from the complications of possible water spills and allows for increased versatility in each application. The HMI touchscreen provides users with customizable settings for better monitoring and controlling of their unit. —Mark Wyckoff, Director of Engineering
Monitor & Control Your Water Disinfection Like Never Before
Our Megatron® R Series models feature an HMI touchscreen where users can accomplish the following:
- Monitor UV-C intensity
- Verify operation of each UV-C lamp
- Check lamp operating hours
- Monitor water temperature
- Control the wiper and fan
- Set an automatic quartz sleeve wiping schedule (auto wiper models only)
Each model is made to order and constructed to meet customer needs. Contact a UV Application Specialist at (631) 273-0500 or email Sales@AtlanticUV.com.


Seamless Integration into Various Building Management Systems
Your building management system is an asset to your commercial or industrial facility. With the integration of Megatron® R Series into your existing system, you can successfully maintain your water disinfection protocols.
Adjust Setpoints & Other Settings for Your Application
The HMI System Setup page allows users to fine-tune the following settings, controlling thresholds for various alarms:
- Maximum water temperature setpoint
- Maximum enclosure temperature setpoint
- UV monitor setpoint (water quality)
- Set minimum UV intensity
- Fan on temperature setpoint
- Lamp replacement setpoint
- Set temperature units
- View water and enclosure temperature

Gallons Per Minute (GPM) that Megatron® models can disinfect at a given variable water quality.
Model | Clear Wastewater | Clear Fresh Water | High Purity Water |
---|---|---|---|
MR50 | 70 | 90 | 100 |
MR90 | 115 | 150 | 190 |
MR150 | 200 | 270 | 325 |
MR250 | 335 | 450 | 560 |
More Standard Features
Each model is constructed of Type 316 stainless steel, electropolished and passivated; with removable heads, multiple drain fittings, access ports, and a sight port. Made in the USA from U.S. and imported parts.
Each Megatron® R Series model is made to order and constructed to meet customer needs. Contact a UV Application Specialist:
- Call (631) 273-0500
- Email Sales@AtlanticUV.com
